Row

Displays its children in a horizontal array.

To cause a child control to expand and fill the available horizontal space, set its expand property.

Example:

    ft.Row(
        controls=[
            ft.Card(
                shape=ft.ContinuousRectangleBorder(radius=10),
                content=ft.Container(
                    padding=5,
                    border_radius=ft.BorderRadius.all(5),
                    bgcolor=ft.Colors.AMBER_100,
                    content=ft.Text(f"Control {i}"),
                ),
            )
            for i in range(1, 6)
        ],
    )

Basic row of controls

Inherits: LayoutControl, ScrollableControl, AdaptiveControl

Properties

• alignment - Defines how the child controls should be placed horizontally.
• controls - A list of Controls to display.
• intrinsic_height - Whether this row should be as tall as the tallest child control in controls.
• run_alignment - How the runs should be placed in the cross-axis when wrap is True.
• run_spacing - The spacing between runs when wrap is True.
• spacing - The spacing between the child controls.
• tight - Whether this row should occupy all available horizontal space (True), or only as much as needed by its children controls (False).
• vertical_alignment - Defines how the child controls should be placed vertically.
• wrap - Whether this row should put child controls into additional rows (runs) if they don't fit in a single row.

Examples

Live example

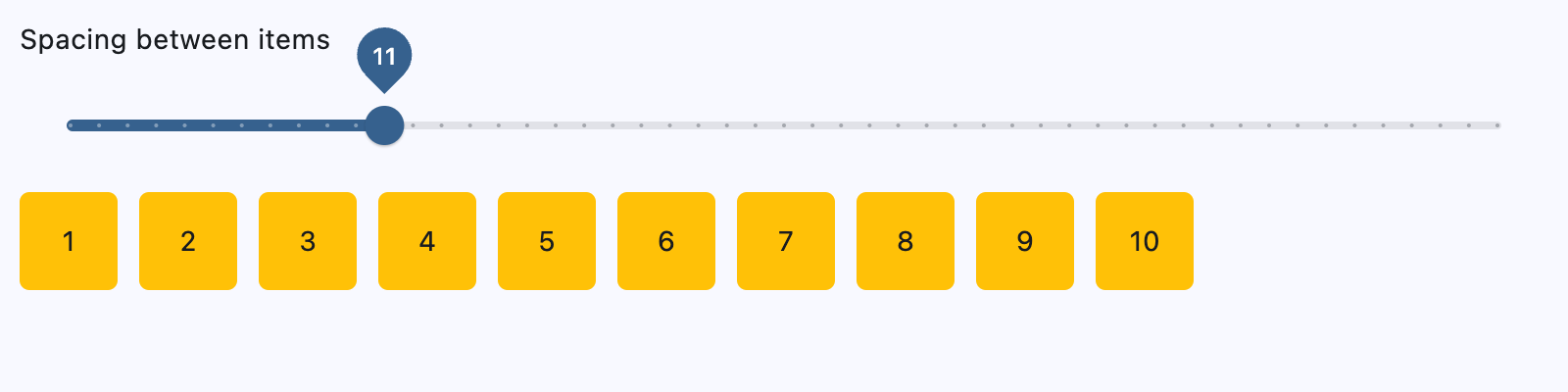

Spacing children

import flet as ft


def main(page: ft.Page):
    def generate_items(count: int):
        return [
            ft.Container(
                content=ft.Text(value=str(i)),
                alignment=ft.Alignment.CENTER,
                width=50,
                height=50,
                bgcolor=ft.Colors.AMBER,
                border_radius=ft.BorderRadius.all(5),
            )
            for i in range(1, count + 1)
        ]

    def handle_slider_change(e: ft.Event[ft.Slider]):
        row.spacing = int(e.control.value)
        row.update()

    row = ft.Row(spacing=0, scroll=ft.ScrollMode.AUTO, controls=generate_items(10))

    page.add(
        ft.SafeArea(
            content=ft.Column(
                controls=[
                    ft.Column(
                        controls=[
                            ft.Text("Spacing between items"),
                            ft.Slider(
                                key="slider",
                                min=0,
                                max=50,
                                divisions=50,
                                value=0,
                                label="{value}",
                                on_change=handle_slider_change,
                            ),
                        ]
                    ),
                    row,
                ]
            )
        )
    )


if __name__ == "__main__":
    ft.run(main)

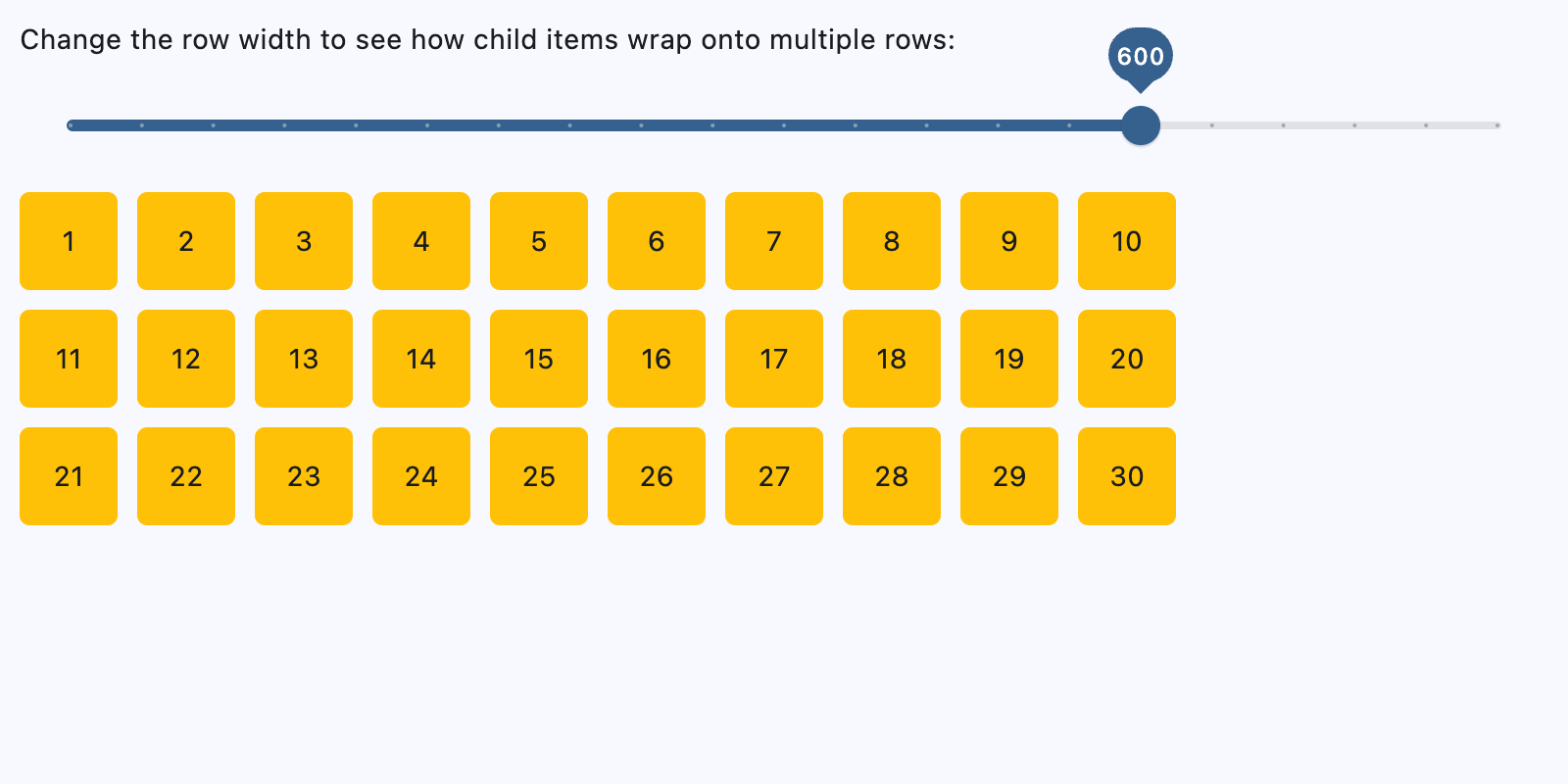

Wrapping children

import flet as ft


def main(page: ft.Page):
    def generate_items(count: int):
        return [
            ft.Container(
                content=ft.Text(value=str(i)),
                alignment=ft.Alignment.CENTER,
                width=50,
                height=50,
                bgcolor=ft.Colors.AMBER,
                border_radius=ft.BorderRadius.all(5),
            )
            for i in range(1, count + 1)
        ]

    def handle_slider_change(e: ft.Event[ft.Slider]):
        row.width = float(e.control.value)
        row.update()

    row = ft.Row(
        wrap=True,
        spacing=10,
        run_spacing=10,
        width=page.window.width,
        controls=generate_items(30),
    )

    page.add(
        ft.SafeArea(
            content=ft.Column(
                controls=[
                    ft.Column(
                        controls=[
                            ft.Text(
                                "Change the row width to see how child items wrap "
                                "onto multiple rows:"
                            ),
                            ft.Slider(
                                min=0,
                                max=page.window.width,
                                divisions=20,
                                value=page.window.width,
                                label="{value}",
                                on_change=handle_slider_change,
                            ),
                        ]
                    ),
                    row,
                ]
            )
        )
    )


if __name__ == "__main__":
    ft.run(main)

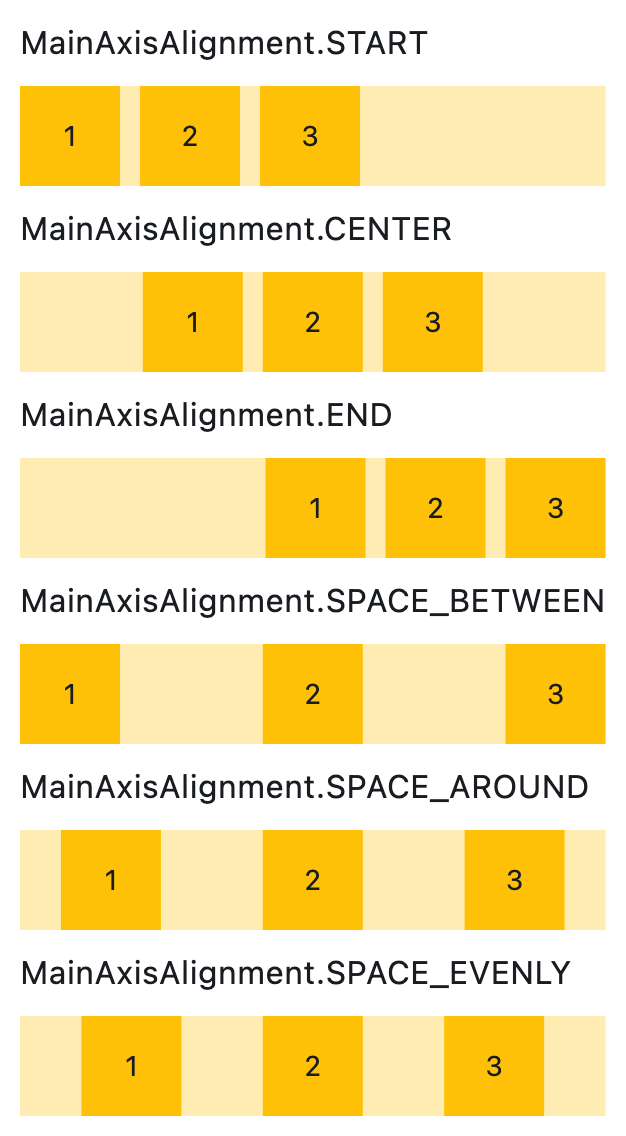

Setting horizontal alignment

import flet as ft


@ft.control
class RowWithAlignment(ft.Column):
    alignment: ft.MainAxisAlignment = ft.MainAxisAlignment.START

    def init(self):
        self.controls = [
            ft.Text(str(self.alignment), size=16),
            ft.Container(
                bgcolor=ft.Colors.AMBER_100,
                content=ft.Row(
                    alignment=self.alignment,
                    controls=self.generate_items(3),
                ),
            ),
        ]

    @staticmethod
    def generate_items(count: int):
        return [
            ft.Container(
                content=ft.Text(value=str(i)),
                alignment=ft.Alignment.CENTER,
                width=50,
                height=50,
                bgcolor=ft.Colors.AMBER_500,
            )
            for i in range(1, count + 1)
        ]


def main(page: ft.Page):
    page.scroll = ft.ScrollMode.AUTO
    page.add(
        ft.SafeArea(
            content=ft.Column(
                scroll=ft.ScrollMode.AUTO,
                controls=[
                    RowWithAlignment(alignment=ft.MainAxisAlignment.START),
                    RowWithAlignment(alignment=ft.MainAxisAlignment.CENTER),
                    RowWithAlignment(alignment=ft.MainAxisAlignment.END),
                    RowWithAlignment(alignment=ft.MainAxisAlignment.SPACE_BETWEEN),
                    RowWithAlignment(alignment=ft.MainAxisAlignment.SPACE_AROUND),
                    RowWithAlignment(alignment=ft.MainAxisAlignment.SPACE_EVENLY),
                ],
            )
        )
    )


if __name__ == "__main__":
    ft.run(main)

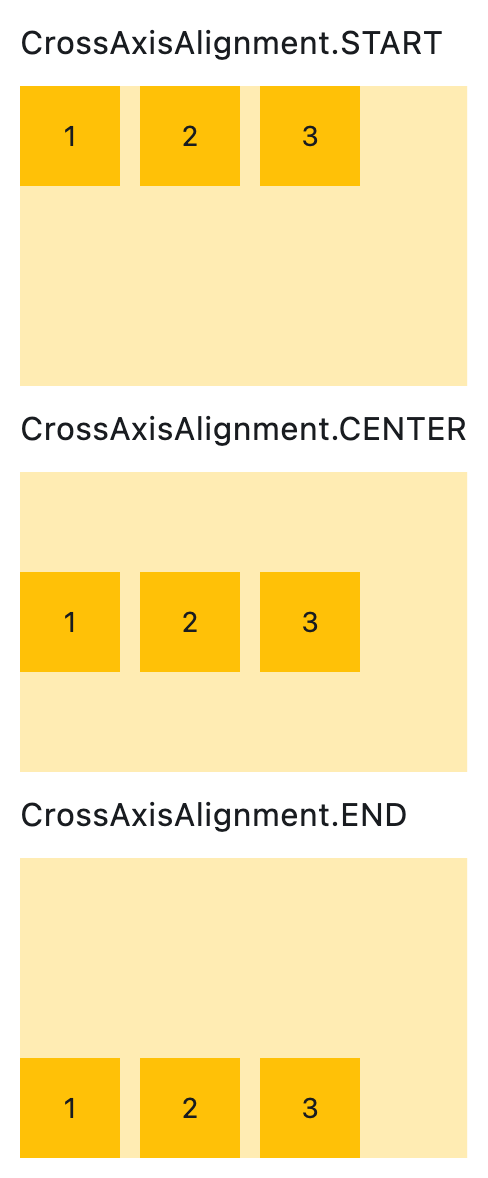

Setting vertical alignment

import flet as ft


@ft.control
class RowWithVerticalAlignment(ft.Column):
    alignment: ft.CrossAxisAlignment = ft.CrossAxisAlignment.START

    def init(self):
        self.controls = [
            ft.Text(str(self.alignment), size=16),
            ft.Container(
                bgcolor=ft.Colors.AMBER_100,
                height=150,
                content=ft.Row(
                    vertical_alignment=self.alignment,
                    controls=self.generate_items(3),
                ),
            ),
        ]

    @staticmethod
    def generate_items(count: int):
        return [
            ft.Container(
                content=ft.Text(value=str(i)),
                alignment=ft.Alignment.CENTER,
                width=50,
                height=50,
                bgcolor=ft.Colors.AMBER_500,
            )
            for i in range(1, count + 1)
        ]


def main(page: ft.Page):
    page.add(
        ft.SafeArea(
            content=ft.Column(
                controls=[
                    RowWithVerticalAlignment(alignment=ft.CrossAxisAlignment.START),
                    RowWithVerticalAlignment(alignment=ft.CrossAxisAlignment.CENTER),
                    RowWithVerticalAlignment(alignment=ft.CrossAxisAlignment.END),
                ]
            )
        )
    )


if __name__ == "__main__":
    ft.run(main)

Properties

buildalignmentclass-attributeinstance-attribute

alignment: MainAxisAlignment = MainAxisAlignment.START

Defines how the child controls should be placed horizontally.

buildcontrolsclass-attributeinstance-attribute

controls: list[Control] = field(default_factory=list)

A list of Controls to display.

buildintrinsic_heightclass-attributeinstance-attribute

intrinsic_height: bool = False

Whether this row should be as tall as the tallest child control in controls.

buildrun_alignmentclass-attributeinstance-attribute

run_alignment: MainAxisAlignment = MainAxisAlignment.START

How the runs should be placed in the cross-axis when wrap is True.

buildrun_spacingclass-attributeinstance-attribute

run_spacing: Number = 10

The spacing between runs when wrap is True.

buildspacingclass-attributeinstance-attribute

spacing: Number = 10

The spacing between the child controls.

Note

Has effect only when alignment is set to flet.MainAxisAlignment.START, flet.MainAxisAlignment.END, or flet.MainAxisAlignment.CENTER.

buildtightclass-attributeinstance-attribute

tight: bool = False

Whether this row should occupy all available horizontal space (True), or only as much as needed by its children controls (False).

Note

Has effect only when wrap is False.

buildvertical_alignmentclass-attributeinstance-attribute

vertical_alignment: CrossAxisAlignment = CrossAxisAlignment.CENTER

Defines how the child controls should be placed vertically.

Note

When wrap is True, this property doesn't support flet.CrossAxisAlignment.STRETCH or flet.CrossAxisAlignment.BASELINE. If either is used, flet.CrossAxisAlignment.CENTER will be applied instead.

buildwrapclass-attributeinstance-attribute

wrap: bool = False

Whether this row should put child controls into additional rows (runs) if they don't fit in a single row.
