RangeSlider

A Material Design range slider. Used to select a range from a range of values.

A range slider can be used to select from either a continuous or a discrete set of values. The default is to use a continuous range of values from min to max.

Example:

ft.RangeSlider(
    min=0,
    max=10,
    start_value=2,
    divisions=10,
    end_value=7,
)
RangeSlider
Range Slider

Inherits: LayoutControl

Properties

  • active_color - The color to use for the portion of the slider track that is active.
  • divisions - The number of discrete divisions.
  • end_value - The currently selected end value of this slider.
  • inactive_color - The color for the inactive portions of the slider track.
  • label - A label to show above the slider thumbs when the slider is active.
  • max - The maximum value the user can select.
  • min - The minimum value the user can select.
  • mouse_cursor - The cursor for a mouse pointer entering or hovering over this control.
  • overlay_color - The highlight color that's typically used to indicate that the range slider thumb is in flet.ControlState.HOVERED or flet.ControlState.DRAGGED state.
  • round - The number of decimals displayed on the label containing {value}.
  • start_value - The currently selected start value for this slider.

Events

  • on_change - Called when the state of this slider is changed.
  • on_change_end - Called when the user is done selecting a new value for this slider.
  • on_change_start - Called when the user starts selecting a new value for this slider.

Examples​

Live example

Basic Example​

import flet as ft


def main(page: ft.Page):
    page.add(
        ft.SafeArea(
            content=ft.Column(
                controls=[
                    ft.Text(
                        value="Range slider with divisions and labels",
                        size=20,
                        weight=ft.FontWeight.BOLD,
                    ),
                    ft.Container(height=30),
                    ft.RangeSlider(
                        min=0,
                        max=50,
                        start_value=10,
                        divisions=10,
                        end_value=20,
                        inactive_color=ft.Colors.GREEN_300,
                        active_color=ft.Colors.GREEN_700,
                        overlay_color=ft.Colors.GREEN_100,
                        label="{value}",
                    ),
                ]
            ),
        )
    )


if __name__ == "__main__":
    ft.run(main)

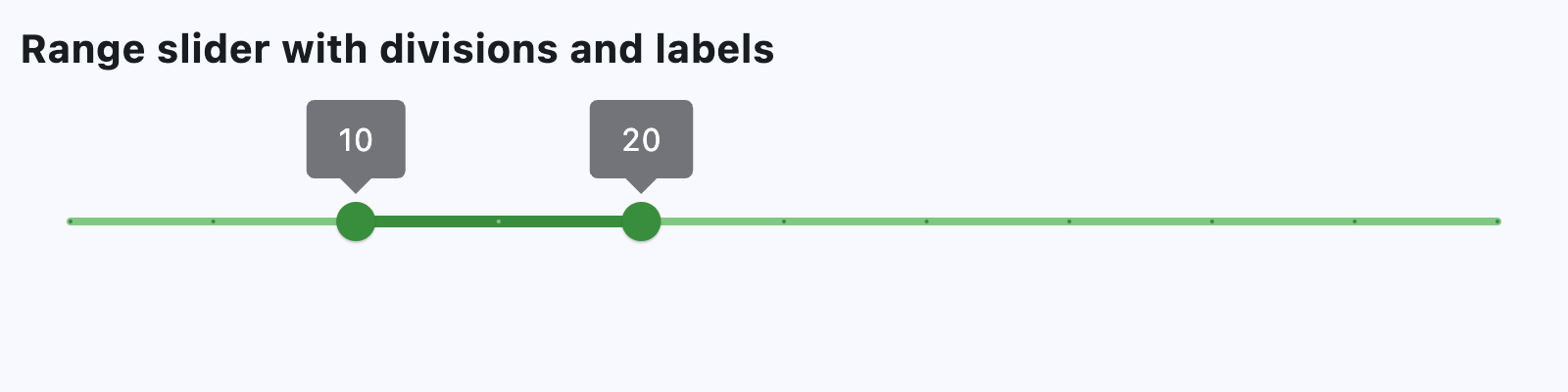

basic

RangeSlider with events​

import flet as ft


def main(page: ft.Page):
    page.scroll = ft.ScrollMode.AUTO

    def handle_slider_change_start(e: ft.Event[ft.RangeSlider]):
        print(f"on_change_start: {e.control.start_value}, {e.control.end_value}")

    def handle_slider_change(e: ft.Event[ft.RangeSlider]):
        print(f"on_change: {e.control.start_value}, {e.control.end_value}")

    def handle_slider_change_end(e: ft.Event[ft.RangeSlider]):
        print(f"on_change_end: {e.control.start_value}, {e.control.end_value}")
        message.value = f"on_change_end: {e.control.start_value}, {e.control.end_value}"

    page.add(
        ft.SafeArea(
            content=ft.Column(
                controls=[
                    ft.Text(
                        value="Range slider with events",
                        size=20,
                        weight=ft.FontWeight.BOLD,
                    ),
                    ft.Container(height=30),
                    ft.RangeSlider(
                        divisions=100,
                        min=0,
                        max=100,
                        start_value=10,
                        end_value=20,
                        on_change_start=handle_slider_change_start,
                        on_change=handle_slider_change,
                        on_change_end=handle_slider_change_end,
                        label="{value}%",
                    ),
                    message := ft.Text(),
                ]
            )
        )
    )


if __name__ == "__main__":
    ft.run(main)

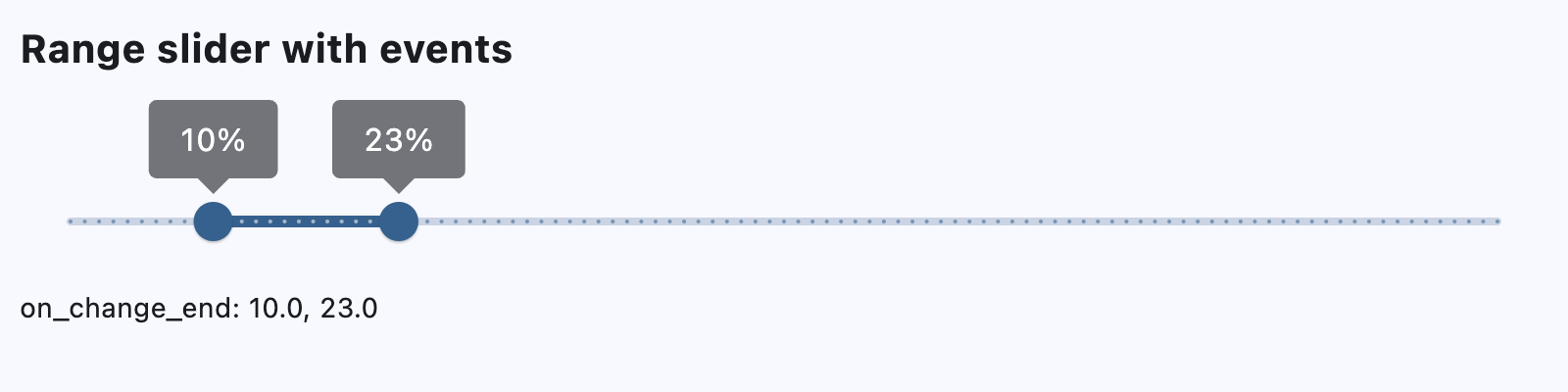

handling_events

Properties​

active_colorclass-attributeinstance-attribute​

active_color: Optional[ColorValue] = None

The color to use for the portion of the slider track that is active.

The "active" segment of the range slider is the span between the thumbs.

divisionsclass-attributeinstance-attribute​

divisions: Annotated[Optional[int], V.gt(0)] = None

The number of discrete divisions.

Typically used with label to show the current discrete values.

If not set, this slider is continuous and label is not displayed.

Raises:

  • ValueError - If it is not strictly greater than 0.

end_valueinstance-attribute​

end_value: Annotated[Number, V.le_field(max), V.ge_field(start_value)]

The currently selected end value of this slider.

The right thumb of this slider is drawn at a position that corresponds to this value. Use label to change the label displayed on the thumb.

Raises:

  • ValueError - If it is not less than or equal to max.
  • ValueError - If it is not greater than or equal to start_value.

inactive_colorclass-attributeinstance-attribute​

inactive_color: Optional[ColorValue] = None

The color for the inactive portions of the slider track.

The "inactive" segments of the slider are the span of tracks between the min and the start thumb, and the end thumb and the max.

labelclass-attributeinstance-attribute​

label: Optional[str] = None

A label to show above the slider thumbs when the slider is active.

It may contain {value} which will be replaced with realtime values of start_value and end_value, in the corresponding slider thumbs.

If not set, then the labels will not be displayed. If divisions is not set, this slider is continuous and labels are not displayed.

maxclass-attributeinstance-attribute​

max: Annotated[Number, V.ge_field(end_value), V.ge_field(min)] = 1.0

The maximum value the user can select.

If the max is equal to the min, then the slider is disabled.

Raises:

  • ValueError - If it is not greater than or equal to end_value.
  • ValueError - If it is not greater than or equal to min.

minclass-attributeinstance-attribute​

min: Annotated[Number, V.le_field(start_value), V.le_field(max)] = 0.0

The minimum value the user can select.

If the max is equal to the min, then the slider is disabled.

Raises:

  • ValueError - If it is not less than or equal to start_value.
  • ValueError - If it is not less than or equal to max.

mouse_cursorclass-attributeinstance-attribute​

mouse_cursor: Optional[ControlStateValue[MouseCursor]] = None

The cursor for a mouse pointer entering or hovering over this control.

overlay_colorclass-attributeinstance-attribute​

overlay_color: Optional[ControlStateValue[ColorValue]] = None

The highlight color that's typically used to indicate that the range slider thumb is in flet.ControlState.HOVERED or flet.ControlState.DRAGGED state.

roundclass-attributeinstance-attribute​

round: Annotated[int, V.between(0, 20)] = 0

The number of decimals displayed on the label containing {value}.

Defaults to 0 - value rounded to the nearest integer.

Raises:

  • ValueError - If it is not between 0 and 20, inclusive.

start_valueinstance-attribute​

start_value: Annotated[Number, V.ge_field(min), V.le_field(end_value)]

The currently selected start value for this slider.

The left thumb of this slider is drawn at a position that corresponds to this value. Use label to change the label displayed on the thumb.

Raises:

  • ValueError - If it is not greater than or equal to min.
  • ValueError - If it is not less than or equal to end_value.

Events​

on_changeclass-attributeinstance-attribute​

on_change: Optional[ControlEventHandler[RangeSlider]] = None

Called when the state of this slider is changed.

on_change_endclass-attributeinstance-attribute​

on_change_end: Optional[ControlEventHandler[RangeSlider]] = None

Called when the user is done selecting a new value for this slider.

on_change_startclass-attributeinstance-attribute​

on_change_start: Optional[ControlEventHandler[RangeSlider]] = None

Called when the user starts selecting a new value for this slider.
