BottomAppBar

A material design bottom app bar.

ft.BottomAppBar(
    bgcolor=ft.Colors.SURFACE_CONTAINER_LOW,
    content=ft.Row(
        alignment=ft.MainAxisAlignment.SPACE_AROUND,
        controls=[
            ft.IconButton(ft.Icons.MENU),
            ft.IconButton(ft.Icons.SEARCH),
            ft.IconButton(ft.Icons.SETTINGS),
        ],
    ),
)
BottomAppBar

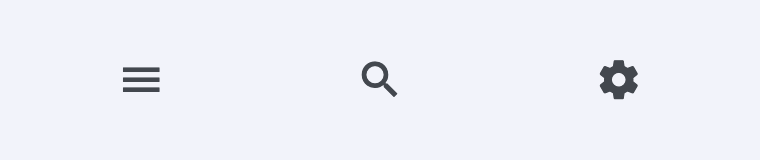

Basic BottomAppBar

Inherits: LayoutControl

Properties

  • bgcolor - The fill color to use for this app bar.
  • border_radius - The border radius to apply when clipping and painting this app bar.
  • clip_behavior - Defines how the content of this app bar should be clipped.
  • content - The content of this bottom app bar.
  • elevation - The z-coordinate at which to place this bottom app bar relative to its parent.
  • notch_margin - The margin between the FloatingActionButton and this app bar's notch.
  • padding - Empty space to inscribe inside a container decoration (background, border).
  • shadow_color - The color of the shadow below this app bar.
  • shape - The notch that is made for the floating action button.

Examples​

Live example

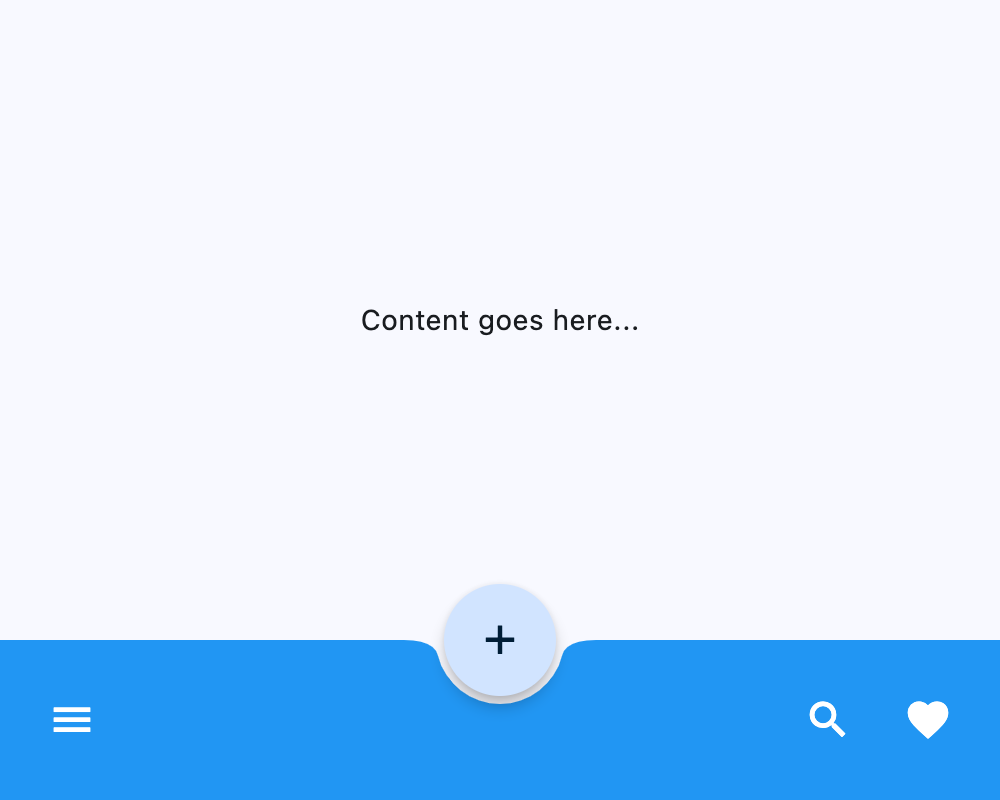

Notched FloatingActionButton​

import flet as ft


def main(page: ft.Page):
    page.vertical_alignment = ft.MainAxisAlignment.CENTER
    page.horizontal_alignment = ft.CrossAxisAlignment.CENTER

    page.floating_action_button = ft.FloatingActionButton(
        icon=ft.Icons.ADD,
        shape=ft.CircleBorder(),
    )
    page.floating_action_button_location = ft.FloatingActionButtonLocation.CENTER_DOCKED

    page.bottom_appbar = ft.BottomAppBar(
        bgcolor=ft.Colors.BLUE,
        shape=ft.CircularRectangleNotchShape(),
        content=ft.Row(
            controls=[
                ft.IconButton(icon=ft.Icons.MENU, icon_color=ft.Colors.WHITE),
                ft.Container(expand=True),
                ft.IconButton(icon=ft.Icons.SEARCH, icon_color=ft.Colors.WHITE),
                ft.IconButton(icon=ft.Icons.FAVORITE, icon_color=ft.Colors.WHITE),
            ]
        ),
    )

    page.add(ft.SafeArea(content=ft.Column(controls=[ft.Text("Content goes here...")])))


if __name__ == "__main__":
    ft.run(main)

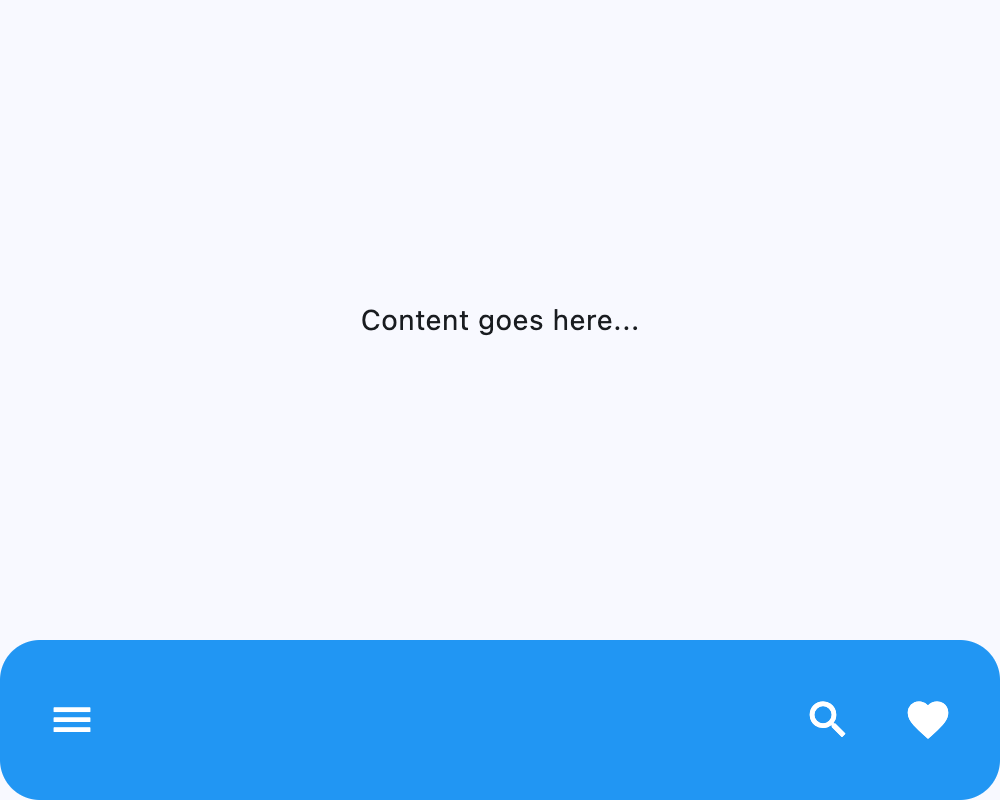

Custom border radius​

import flet as ft


def main(page: ft.Page):
    page.vertical_alignment = ft.MainAxisAlignment.CENTER
    page.horizontal_alignment = ft.CrossAxisAlignment.CENTER

    page.bottom_appbar = ft.BottomAppBar(
        border_radius=ft.BorderRadius.all(20),
        bgcolor=ft.Colors.BLUE,
        content=ft.Row(
            controls=[
                ft.IconButton(icon=ft.Icons.MENU, icon_color=ft.Colors.WHITE),
                ft.Container(expand=True),
                ft.IconButton(icon=ft.Icons.SEARCH, icon_color=ft.Colors.WHITE),
                ft.IconButton(icon=ft.Icons.FAVORITE, icon_color=ft.Colors.WHITE),
            ]
        ),
    )

    page.add(ft.SafeArea(content=ft.Column(controls=[ft.Text("Content goes here...")])))


if __name__ == "__main__":
    ft.run(main)

Properties​

bgcolorclass-attributeinstance-attribute​

bgcolor: Optional[ColorValue] = None

The fill color to use for this app bar.

If None, flet.BottomAppBarTheme.bgcolor is used; if that is also None, then defaults to flet.ColorScheme.surface.

border_radiusclass-attributeinstance-attribute​

border_radius: Optional[BorderRadiusValue] = None

The border radius to apply when clipping and painting this app bar.

clip_behaviorclass-attributeinstance-attribute​

clip_behavior: Optional[ClipBehavior] = None

Defines how the content of this app bar should be clipped.

If None, defaults to:

contentclass-attributeinstance-attribute​

content: Optional[Control] = None

The content of this bottom app bar.

elevationclass-attributeinstance-attribute​

elevation: Annotated[Optional[Number], V.ge(0)] = None

The z-coordinate at which to place this bottom app bar relative to its parent. It controls the size of the shadow below this app bar.

If None, flet.BottomAppBarTheme.elevation is used; if that is also None, then defaults to 3.

Raises:

  • ValueError - If it is not greater than or equal to 0.

notch_marginclass-attributeinstance-attribute​

notch_margin: Number = 4.0

The margin between the FloatingActionButton and this app bar's notch.

Note

Has effect only if shape is not None.

paddingclass-attributeinstance-attribute​

padding: Optional[PaddingValue] = None

Empty space to inscribe inside a container decoration (background, border).

If None, flet.BottomAppBarTheme.padding is used; if that is also None, then defaults to Padding.symmetric(vertical=12.0, horizontal=16.0).

shadow_colorclass-attributeinstance-attribute​

shadow_color: Optional[ColorValue] = None

The color of the shadow below this app bar.

If None, flet.BottomAppBarTheme.shadow_color is used; if that is also None, then defaults to flet.Colors.TRANSPARENT.

shapeclass-attributeinstance-attribute​

shape: Optional[NotchShape] = None

The notch that is made for the floating action button.

If None, flet.BottomAppBarTheme.shape is used; if that is also None, then the shape will be rectangular with no notch.
