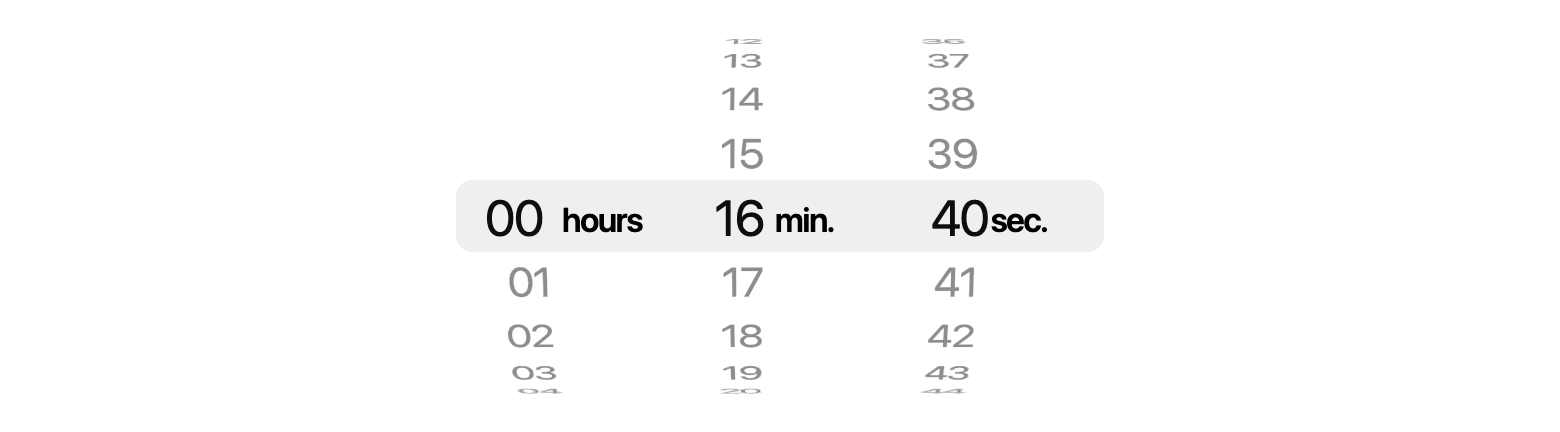

CupertinoTimerPicker

A countdown timer picker in iOS style.

It can show a countdown duration with hour, minute and second spinners. The duration is bound between 0 and 23 hours 59 minutes 59 seconds.

Example:

ft.CupertinoTimerPicker(value=1000)
CupertinoTimerPicker
Simple Cupertino timer picker

Inherits: LayoutControl

Properties

  • alignment - Defines how this picker should be positioned within its parent.
  • bgcolor - The background color of this picker.
  • item_extent - The uniform height of all children.
  • minute_interval - The granularity of the minute spinner.
  • mode - The mode of this picker.
  • second_interval - The granularity of the second spinner.
  • value - The initial duration of the countdown timer.

Events

  • on_change - Called when the timer's duration changes.

Examples​

Live example

Basic Example​

import time

import flet as ft


def main(page: ft.Page):
    page.horizontal_alignment = ft.CrossAxisAlignment.CENTER

    timer_value_text = ft.Text(
        value="00:01:10",
        size=23,
        color=ft.CupertinoColors.DESTRUCTIVE_RED,
    )

    def handle_timer_picker_change(e: ft.Event[ft.CupertinoTimerPicker]):
        timer_value_text.value = time.strftime("%H:%M:%S", time.gmtime(e.data))

    timer_picker = ft.CupertinoTimerPicker(
        value=300,
        second_interval=10,
        minute_interval=1,
        mode=ft.CupertinoTimerPickerMode.HOUR_MINUTE_SECONDS,
        on_change=handle_timer_picker_change,
    )

    page.add(
        ft.SafeArea(
            content=ft.Row(
                tight=True,
                controls=[
                    ft.Text("TimerPicker Value:", size=23),
                    ft.CupertinoButton(
                        on_click=lambda _: page.show_dialog(
                            ft.CupertinoBottomSheet(
                                height=216,
                                padding=ft.Padding.only(top=6),
                                content=timer_picker,
                            )
                        ),
                        content=timer_value_text,
                    ),
                ],
            ),
        )
    )


if __name__ == "__main__":
    ft.run(main)

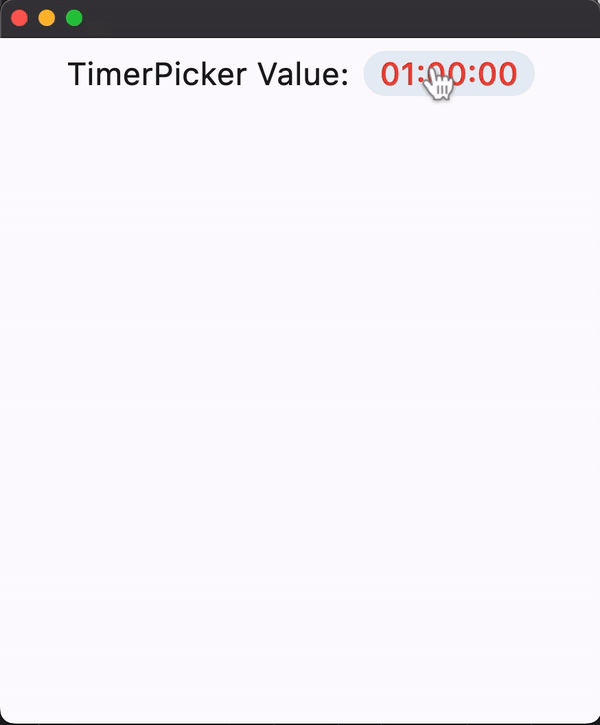

basic

Properties​

alignmentclass-attributeinstance-attribute​

alignment: Alignment = field(default_factory=(lambda: Alignment.CENTER))

Defines how this picker should be positioned within its parent.

bgcolorclass-attributeinstance-attribute​

bgcolor: Optional[ColorValue] = None

The background color of this picker.

item_extentclass-attributeinstance-attribute​

item_extent: Number = 32.0

The uniform height of all children.

Raises:

  • ValueError - If it is not strictly greater than 0.0.

minute_intervalclass-attributeinstance-attribute​

minute_interval: Annotated[int, V.gt(0), V.factor_of(60)] = 1

The granularity of the minute spinner.

Raises:

  • ValueError - If it is not strictly greater than 0.
  • ValueError - If it is not a factor of 60.

modeclass-attributeinstance-attribute​

mode: CupertinoTimerPickerMode = CupertinoTimerPickerMode.HOUR_MINUTE_SECONDS

The mode of this picker.

second_intervalclass-attributeinstance-attribute​

second_interval: Annotated[int, V.gt(0), V.factor_of(60)] = 1

The granularity of the second spinner.

Raises:

  • ValueError - If it is not strictly greater than 0.
  • ValueError - If it is not a factor of 60.

valueclass-attributeinstance-attribute​

value: DurationValue = field(default_factory=(lambda: Duration()))

The initial duration of the countdown timer.

If specified as an integer, it will be assumed to be in seconds.

Raises:

  • ValueError - If it is not greater than or equal to 0.
  • ValueError - If it is not strictly less than 24 hours.
  • ValueError - If it is not a multiple of minute_interval.
  • ValueError - If it is not a multiple of second_interval.

Events​

on_changeclass-attributeinstance-attribute​

on_change: Optional[ControlEventHandler[CupertinoTimerPicker]] = None

Called when the timer's duration changes.

The data property of the event handler contains the new duration value. Its type matches value: if value is a Duration, then data is also a Duration; otherwise, it is an int (seconds).
